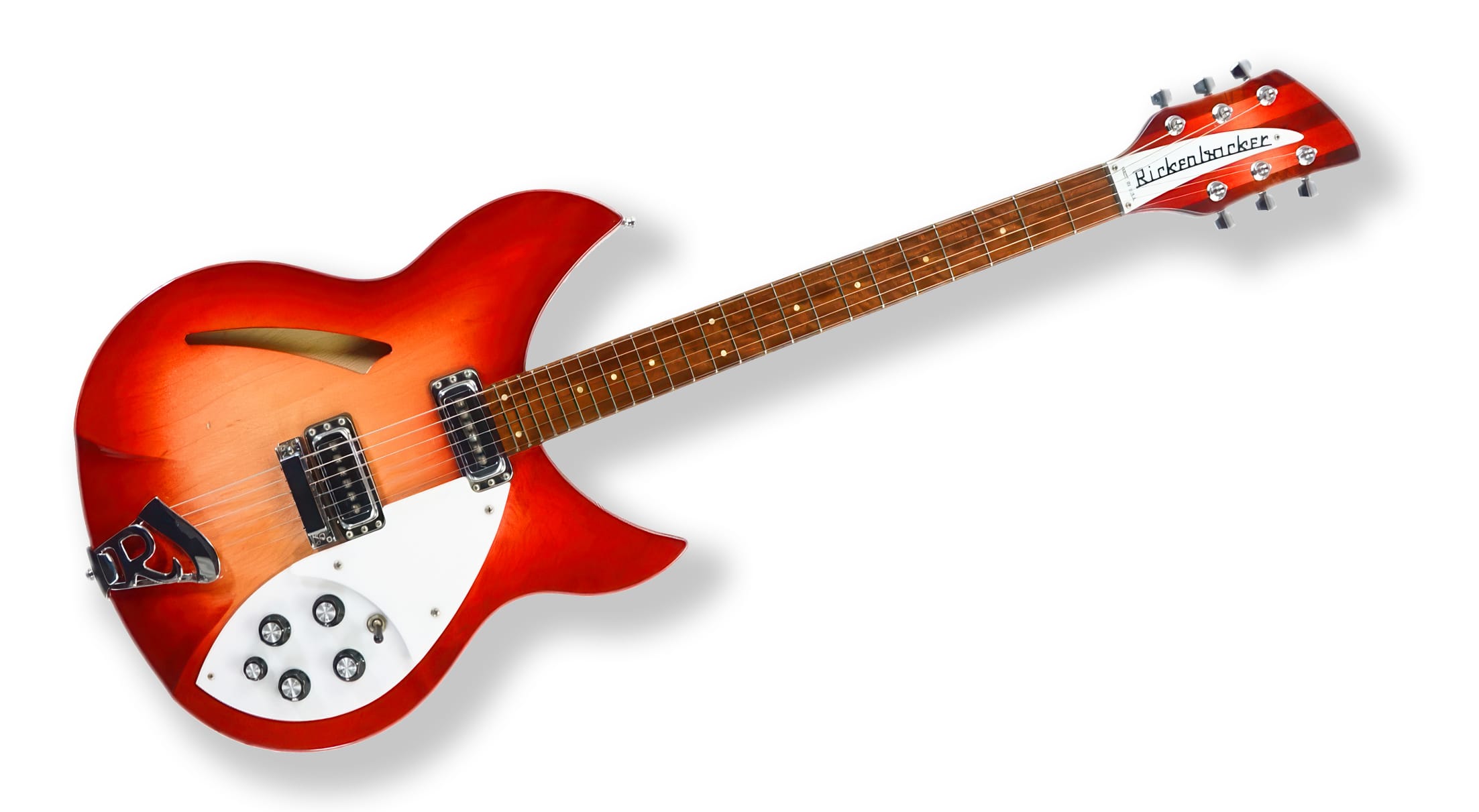

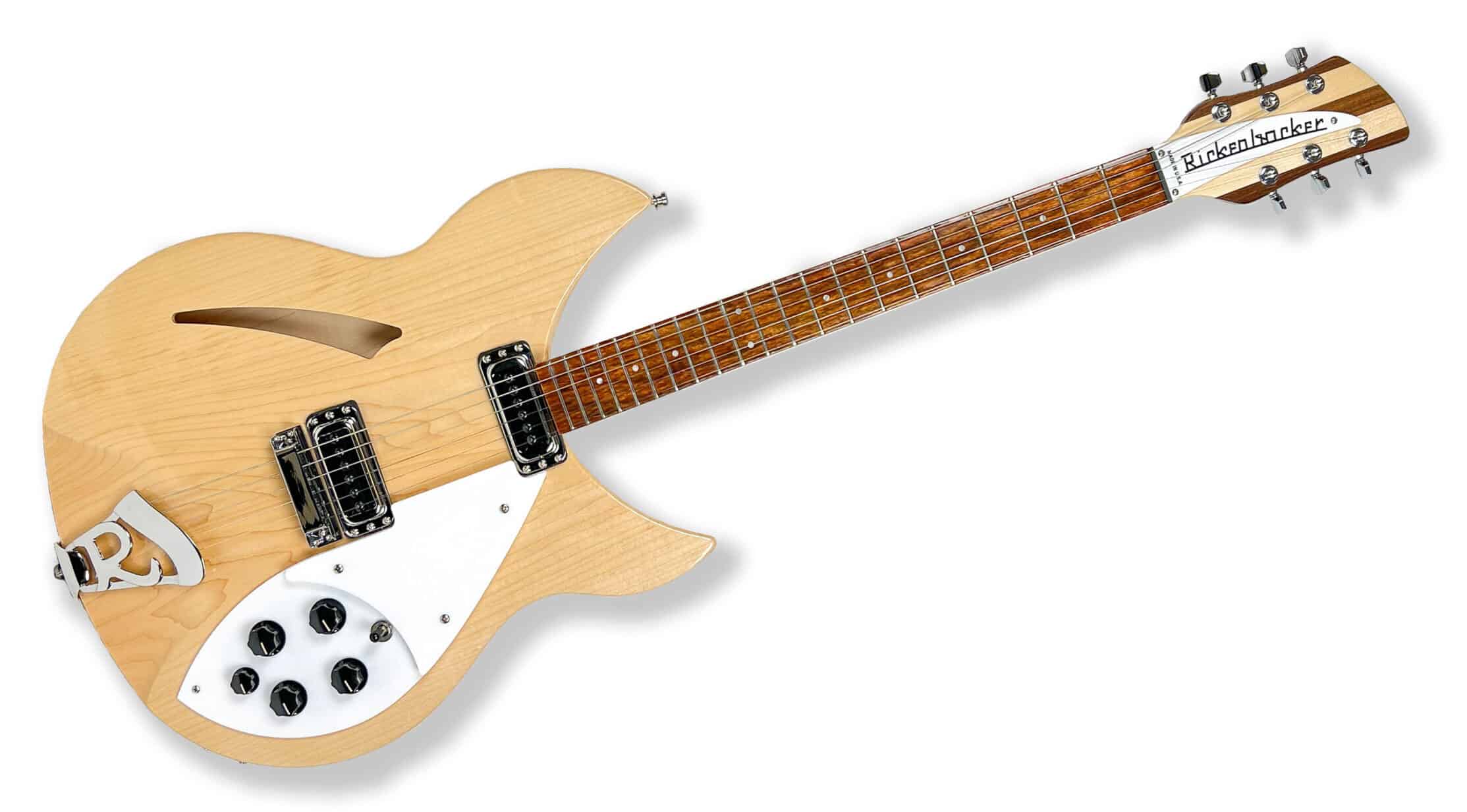

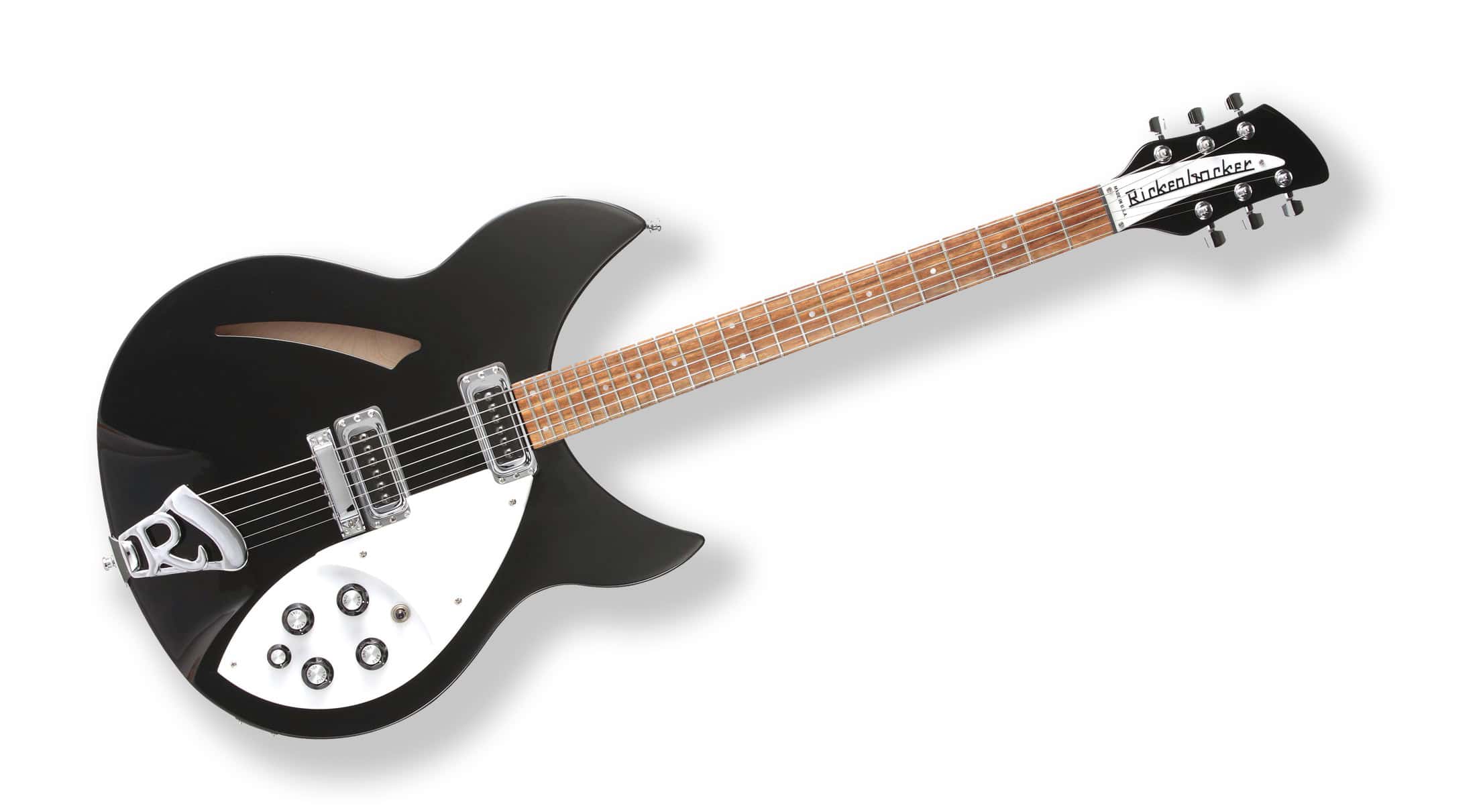

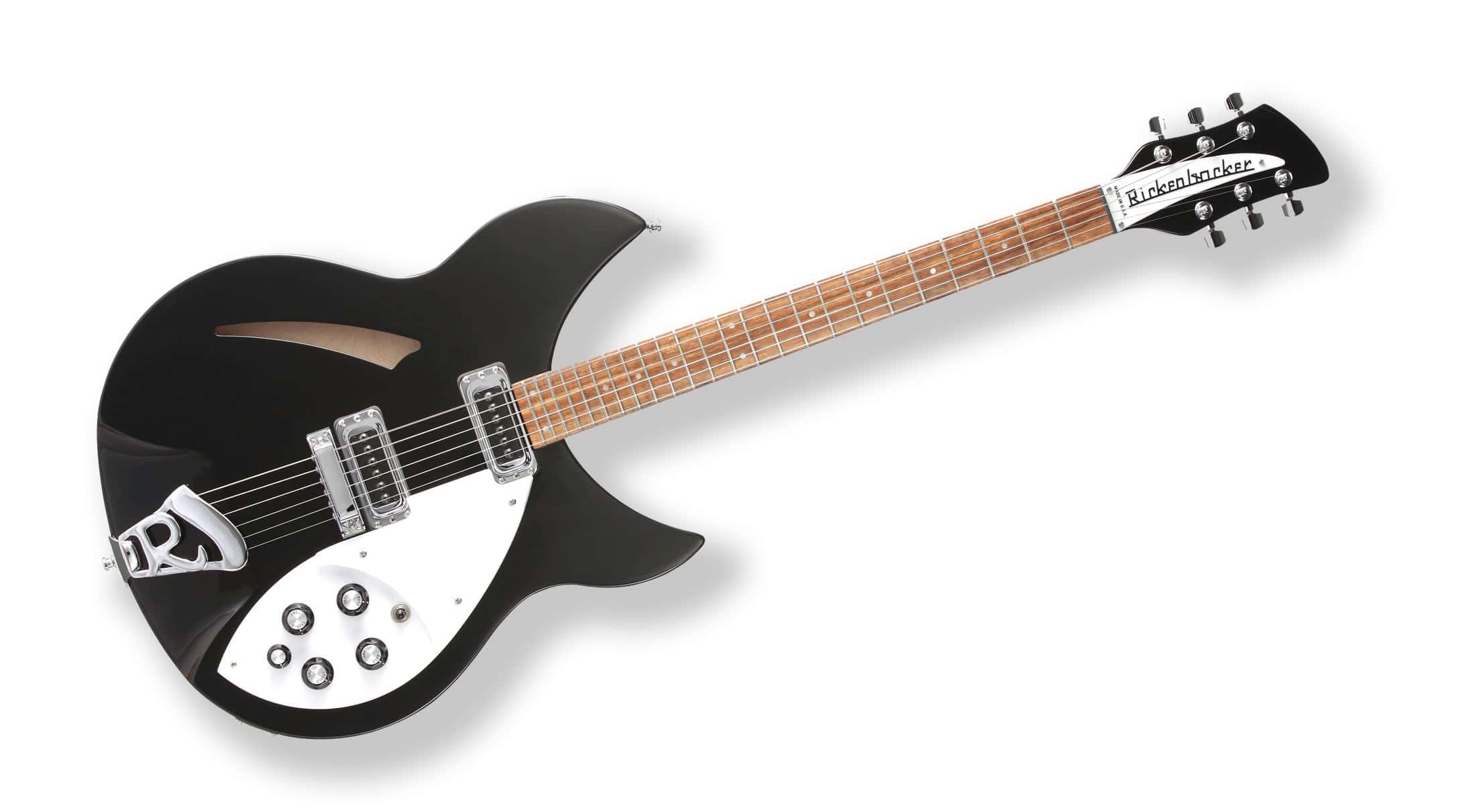

Model 330

Careful acoustic research has resulted in the full, rich and warm sound of this popular model. Two single coil pickups on a full size body are accented by a traditionally shaped sound hole. The 21 fret Rosewood fingerboard is punctuated by dot inlay fret markers, with full double cutaways permitting access to all the frets. Standard output is monaural through a single jack plate. Also available as twelve string versions – Model 330/12.


Body TypeSemi-Acoustic
No. Frets21
Scale Length62.9 cm (24 3/4”)
Neck Width at Nut41.4 mm (1.63”)
Neck Width at 12th Fret49.05 mm (1 .931”)
Crown Radius25.4 cm (10”)
Body WoodMaple
Neck WoodMaple & Walnut
Fingerboard WoodRosewood
Weight3.6 kg (8.0 lbs.)
Overall Length100.3 cm (39 1/2”)
Overall Width38.1 cm (15”)
Overall Depth38.1 mm (1 1/2”)
Neck BindingNo
Fret Marker StyleDot
Bridge6 Saddle
Neck TypeSet-in
No. of Pickups2
Type of PickupsHi-gain
Output TypeMono
Machine HeadsGotoh
