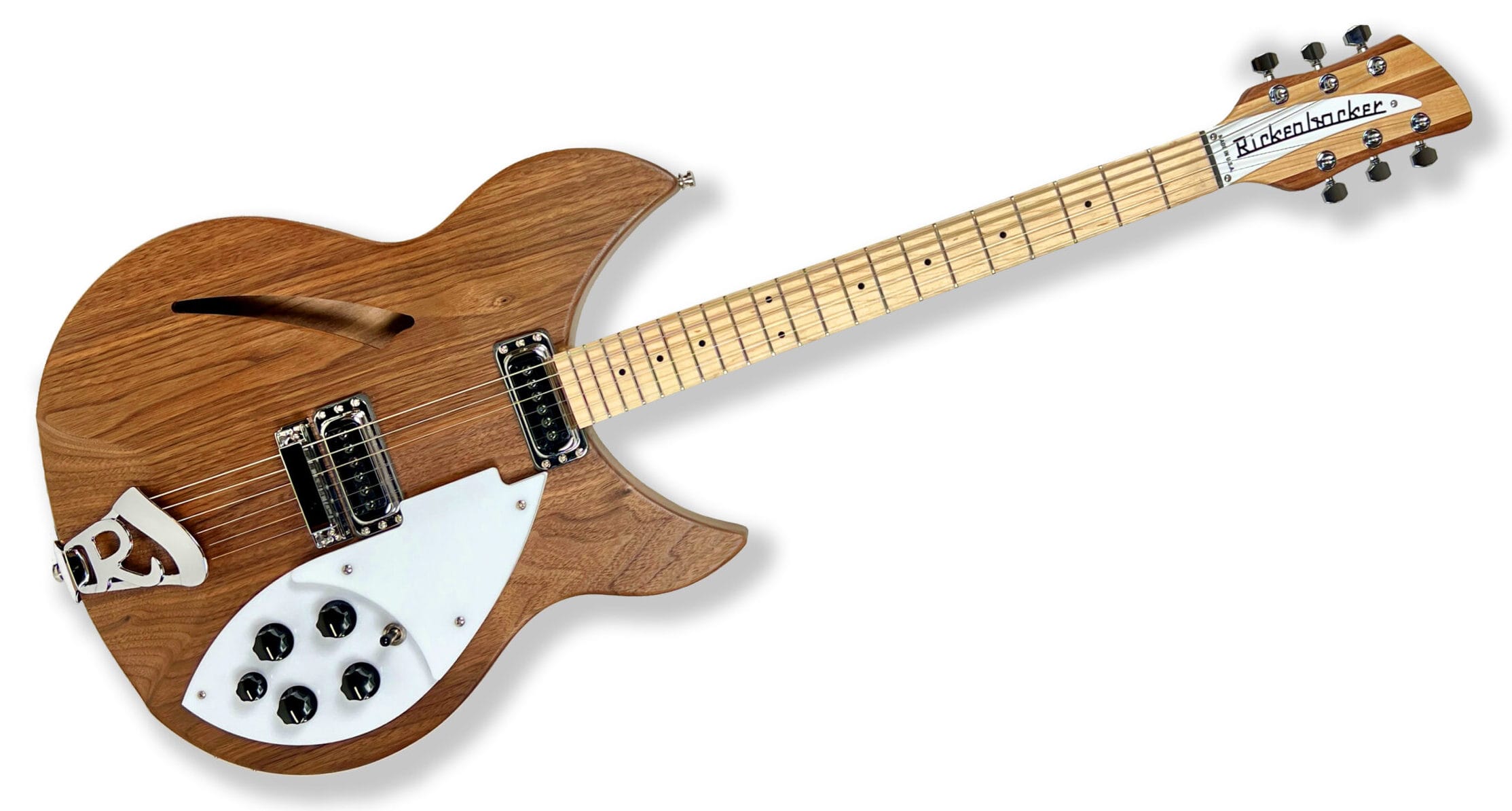

Model 330W

A natural spin on a classic, the W Series brings the same full, rich and warm sound that have made 330’s popular since the 1960’s. The iconic design is now strengthened with the natural character of walnut and polished with an oil finish. Two single coil pickups on a full size body are accented by a traditionally shaped sound hole. The 21 fret Maple fingerboard is punctuated by dot inlay fret markers, with full double cutaways permitting access to all the frets. Standard output is monaural through a single jack plate.

Schematic diagram Parts diagram

Specifications

Body TypeSemi-Acoustic
No. Frets21
Scale Length62.9 cm (24 3/4”)
Neck Width at Nut41.4 mm (1.63”)
Neck Width at 12th Fret49.05 mm (1 .931”)
Crown Radius25.4 cm (10”)
Body WoodWalnut
Neck WoodMaple & Walnut
Fingerboard WoodMaple
Weight3.6 kg (8.0 lbs.)
Overall Length100.3 cm (39 1/2”)
Overall Width38.1 cm (15”)
Overall Depth38.1 mm (1 1/2”)
Neck BindingNo
Fret Marker StyleDot
Tailpiece‘R’
Bridge6 Saddle
Neck TypeSet-in
No. of Pickups2
Type of PickupsHi-gain
Output TypeMono
Machine HeadsGotoh
