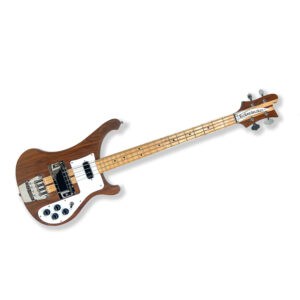

Model 4003SW

This is the walnut series version of the 4003S. The solid and natural look of a walnut body with a maple fingerboard. This version puts out even warmer bass tones than the maple version.

Schematic diagram Parts diagram

Specifications

Body Type	Solid
No. Frets	20
Scale Length	84.5cm (33 1/4″)
Neck Width at Nut	42.9 mm (1 11/16”)
Neck Width at 12th Fret	54.0 mm (2 1/8”)
Crown Radius	25.4 cm (10”)
Body Wood	Walnut
Neck Wood	Maple & Walnut
Fingerboard Wood	Maple
Weight	4.1 kg (9.0 lbs.)
Overall Length	113.8 cm (44 13/16”)

Overall Width	34.3 cm (13 1/2”)
Overall Depth	31.8 mm (1 1/4”)
Neck Binding	Yes
Fret Marker Style	Dot
Tailpiece	RIC
Bridge	V2
Neck Type	Thru body
No. of Pickups	2
Type of Pickups	Hi-gain
Output Type	Mono
Machine Heads	Schaller

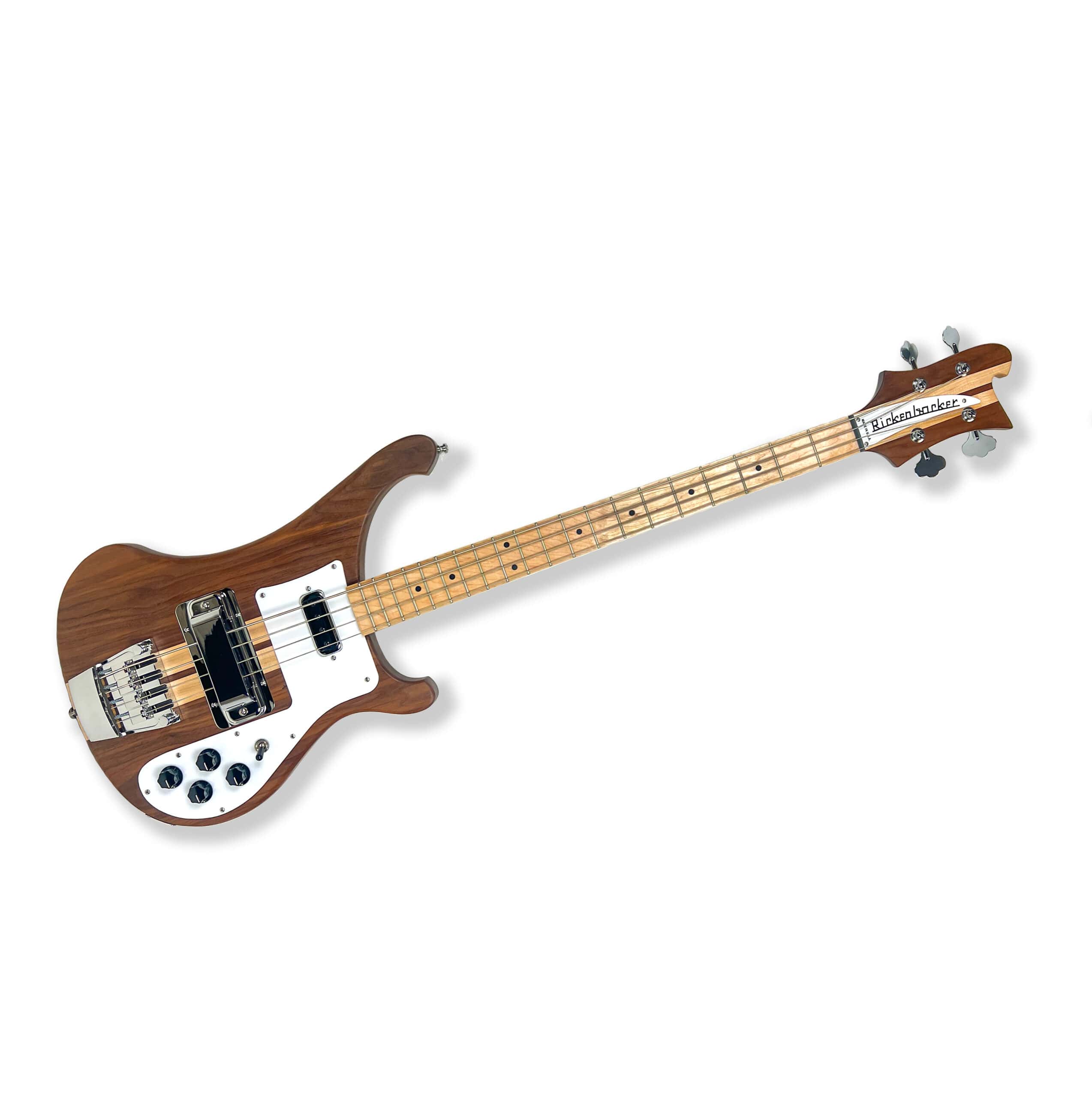

Gallery
