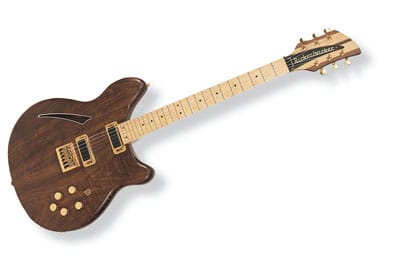

Model 380L Laguna

A fusion of history and technology, the 380L Laguna takes the art of the electric guitar up a notch. An oil-finished Walnut body is mated to an all Maple neck and fingerboard, made just a bit wider than RIC tradition. Standard with two humbucking pickups, the PZ option adds six saddle-mounted pickups and active circuitry to achieve rich acoustic guitar timbre.

Schematic diagram Parts diagram

Specifications

Body TypeSemi-Acoustic
No. Frets24
Scale Length62.9 cm (24 3/4”)
Neck Width at Nut44.45 mm (1 3/4”)
Neck Width at 12th Fret53.52 mm (2.107”)
Crown Radius25.4 cm (10”)
Body WoodWalnut
Neck WoodMaple
Fingerboard WoodMaple
Weight3.2 kg (7.0 lbs.)
Overall Length101 cm (39 3/4”)
Overall Width38.1 cm (15”)
Overall Depth38.1 mm (1 1/2”)
Neck BindingYes
Fret Marker StyleDot
TailpieceLow Profile
Bridge6 Saddle
Neck TypeSet-in
No. of Pickups2 or 3
Type of PickupsHumbucking or Piezo
Output TypeMixed and Split
Machine HeadsSchaller
