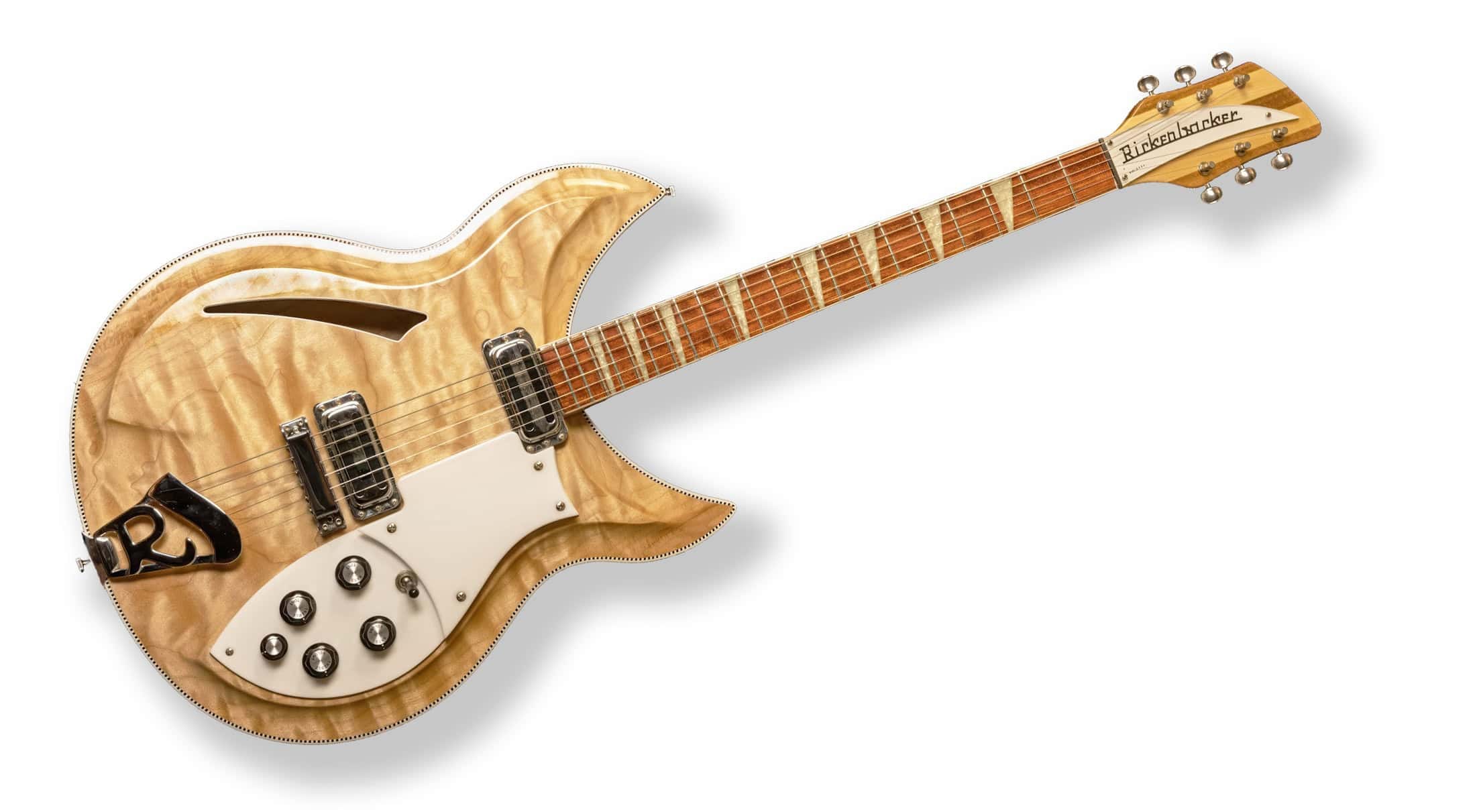

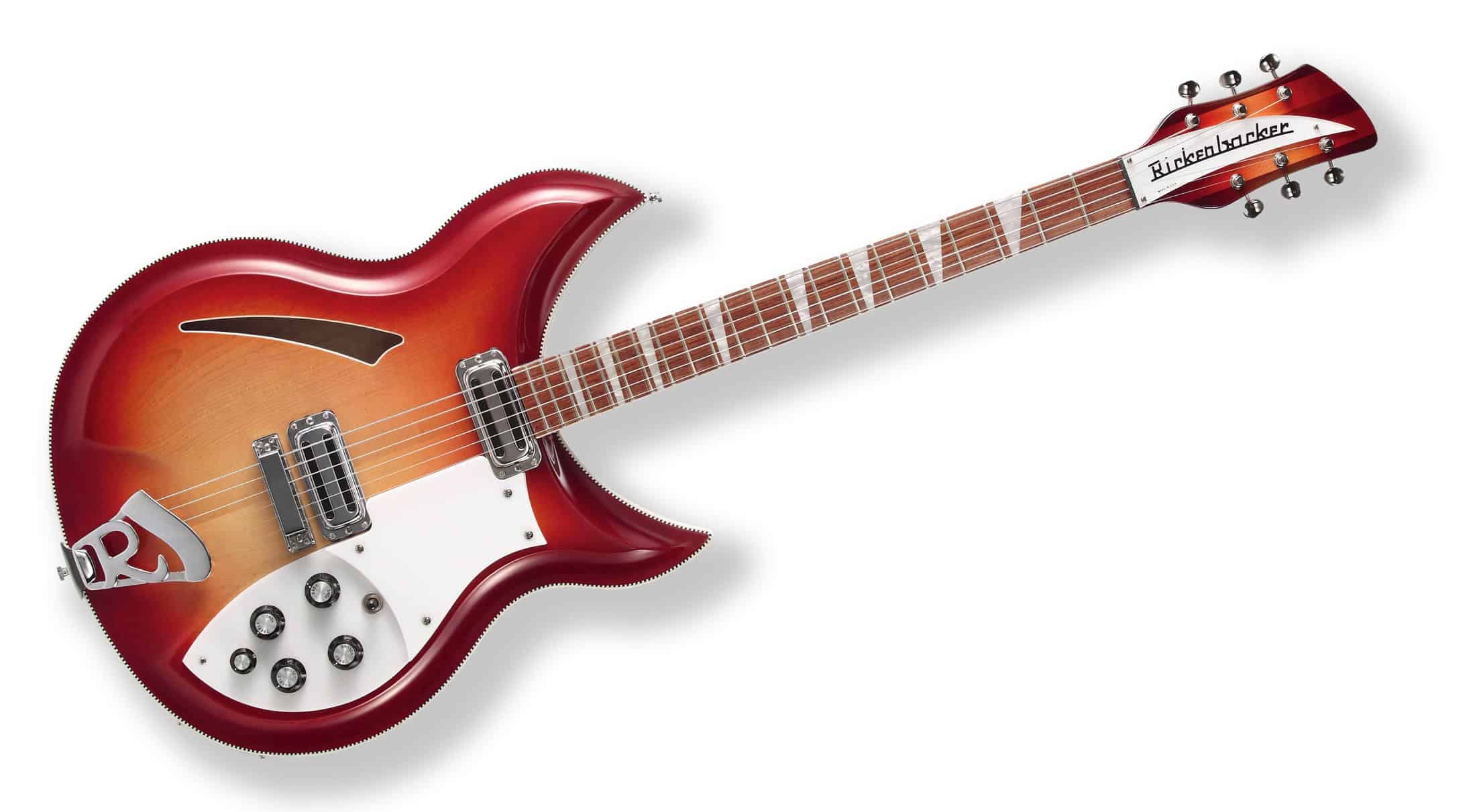

Model 381V69


Derived from a design dating back to 1957, this guitar is memorable for its hand-carved arch top and back. Employing only premium ‘charactered’ Maple, model 381V69 has a full bound body with ‘checked’ binding and extreme double cutaways, along with a bound crescent sound hole to complete this exquisite guitar.
Schematic diagram Parts diagram

Specifications

Body TypeSemi-Acoustic
No. Frets24
Scale Length62.9 cm (24 3/4”)
Neck Width at Nut41.4 mm (1.63”)
Neck Width at 12th Fret49.05 mm (1 .931”)
Crown Radius25.4 cm (10”)
Body WoodCharactered Maple
Neck WoodMaple
Fingerboard WoodRosewood
Weight4.1 kg (9.0 lbs.)
Overall Length99.1 cm (39”)
Overall Width38.7 cm (15 1/4”)
Overall Depth63.5 mm (2 1/2”)
Neck BindingYes
Fret Marker StyleTriangle
Tailpiece‘R’
Bridge6-way split saddle
Neck TypeSet-in
No. of Pickups2
Type of PickupsVintage Single Coil Toaster Top™
Output TypeMono and Stereo
Machine HeadsSchaller
